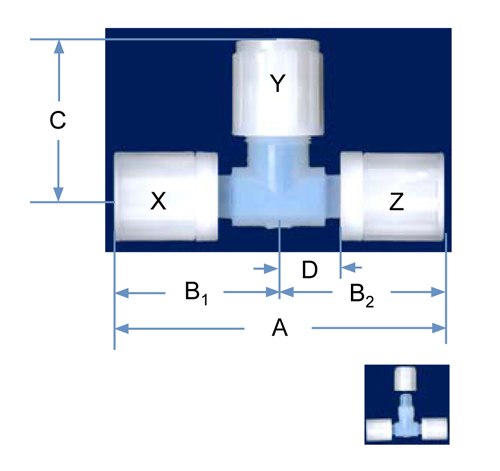

For “D” Dimension 4T = .66, 6T = .68, 8T = .73, 12T = .87, 16T = 1.27,T = Tight Flare,Flares 1/4” to 3/4” have close tolerance technology, i.e., location from centerline+/- 0.005”. 1” flares have a tolerance of +/-0.03”

PFA Part No.	X	Y	Z	Orifice	A	B1	B2	C
UT4T-4-4TN-1	1/4	1/4	1/4	.15	3.28	1.64	1.64	1.65
UT4T-6-4TN-1	1/4	3/8	1/4	.15	3.28	1.64	1.64	1.76
UT6T-6-6TN-1	3/8	3/8	3/8	.25	3.46	1.73	1.73	1.76
UT6T-8-6TN-1	3/8	1/2	3/8	.25	3.46	1.73	1.73	1.86
UT8T-6-6TN-1	1/2	3/8	3/8	.25	3.58	1.85	1.73	1.76
UT8T-8-4TN-1	1/2	1/2	1/4	.15	3.49	1.85	1.64	1.86
UT8T-8-8TN-1	1/2	1/2	1/2	.38	3.70	1.85	1.85	1.86
UT8T-12-8TN-1	1/2	3/4	1/2	.38	3.70	1.85	1.85	2.18
UT12T-4-12TN-1	3/4	1/4	3/4	.15	4.26	2.13	2.13	1.65
UT12T-6-12TN-1	3/4	3/8	3/4	.25	4.26	2.13	2.13	1.75
UT12T-8-12TN-1	3/4	1/2	3/4	.38	4.26	2.13	2.13	1.86
UT12T-12-12TN-1	3/4	3/4	3/4	.63	4.26	2.13	2.13	2.18
UT16T-8-16TN-1	1	1/2	1	.38	5.54	2.77	2.77	2.22
UT16T-12-16TN-1	1	3/4	1	.63	5.54	2.77	2.77	2.18
UT16T-16-16TN-1	1	1	1	.88	5.54	2.77	2.77	2.70
