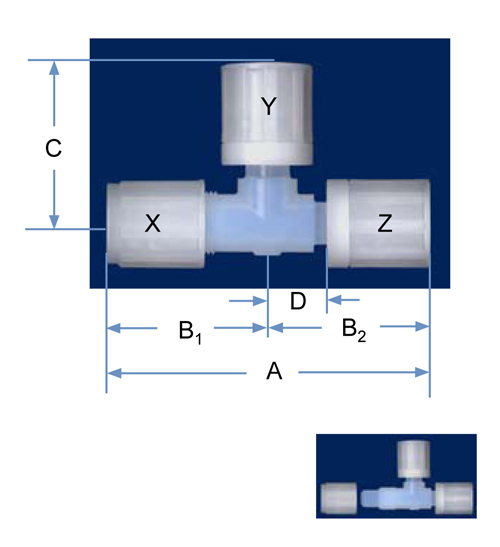

For “D” Dimension 4T = .66, 6T = .68, 8T = .73, 12T = .87, 16T = 1.27,T = Tight Flare,Flares 1/4” to 3/4” have close tolerance technology, i.e., location from centerline +/- 0.005”. 1” flares have a tolerance of +/-0.03”

PFA Part No.	X	Y	Z	Orifice	A	B1	B2	C
UT4-4T-4TN-1	1/4	1/4	1/4	.15	3.29	1.65	1.64	1.64
UT6-4T-6TN-1	3/8	1/4	3/8	.15	3.48	1.75	1.73	1.64
UT6-6T-6TN-1	3/8	3/8	3/8	.25	3.48	1.75	1.73	1.73
UT8-8T-8TN-1	1/2	1/2	1/2	.38	3.70	1.86	1.84	1.84
UT8-12T-12TN-1	1/2	3/4	3/4	.38	3.99	1.86	2.13	2.13
UT12-8T-12TN-1	3/4	1/2	3/4	.38	4.31	2.18	2.13	1.84
UT12-12T-8TN-1	3/4	3/4	1/2	.38	4.02	2.18	1.84	2.13
UT12-12T-12TN-1	3/4	3/4	3/4	.63	4.34	2.18	2.13	2.13
UT16-16T-12TN-1	1	1	3/4	.63	4.83	2.70	2.13	2.77
UT16-16T-16TN-1	1	1	1	.88	5.47	2.70	2.77	2.77
