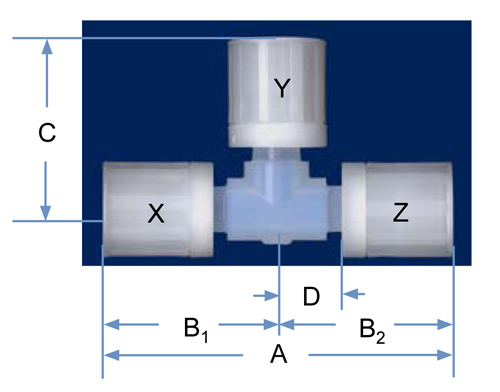

For “D” Dimension 4T = .66, 6T = .68, 8T = .73, 12T = .87, 16T = 1.27,T = Tight Flare,Flares 1/4” to 3/4” have close tolerance technology, i.e., location from centerline+/- 0.005”. 1” flares have a tolerance of +/-0.03”

PFA Part No.	X	Y	Z	Orifice	A	B1	B2	C
UT4TN-1	1/4	1/4	1/4	.15	3.28	1.64	1.64	1.64
UT4T-6T-4TN-1	1/4	3/8	1/4	.15	3.28	1.64	1.64	1.73
UT6TN-1	3/8	3/8	3/8	.25	3.46	1.73	1.73	1.73
UT6T-8T-4TN-1	3/8	1/2	1/4	.15	3.37	1.73	1.64	1.84
UT8TN-1	1/2	1/2	1/2	.38	3.68	1.84	1.84	1.84
UT8T-8T-4TN-1	1/2	1/2	1/4	.15	3.48	1.84	1.64	1.84
UT8T-12T-8TN-1	1/2	3/4	1/2	.38	3.68	1.84	1.84	2.13
UT12TN-1	3/4	3/4	3/4	.63	4.26	2.13	2.13	2.13
UT12T-6T-12TN-1	3/4	3/8	3/4	.25	4.26	2.13	2.13	1.73
UT12T-8T-12TN-1	3/4	1/2	3/4	.38	4.23	2.13	2.13	1.84
UT12T-12T-8TN-1	3/4	3/4	1/2	.38	3.97	2.13	1.84	2.13
UT16TN-1	1	1	1	.88	5.54	2.77	2.77	2.77
