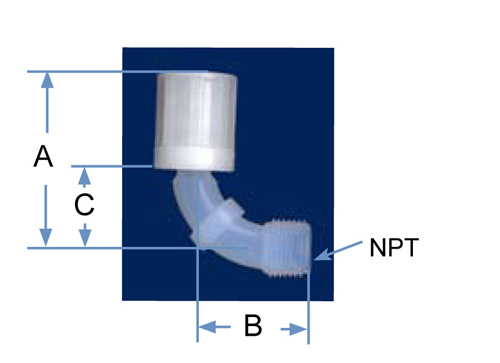

T = Tight Flare,Flares 1/4” to 3/4” have close tolerance technology, i.e., location fromcenterline +/- 0.005”. 1” flares have a tolerance of +/-0.03”

PFA Part No.	Tube O.D.	Orifice	A	B	C
MES4T-4N-1	1/4	.15	1.20	1.78	.79
MES6T-6N-1	3/8	.25	1.32	1.97	.93
MES8T-8N-1	1/2	.38	1.55	2.15	1.05
MES12T-12N-1	3/4	.63	1.76	2.56	1.31
MES16T-16N-1	1	.88	2.26	3.22	1.72
