T = Tight Flare,Flares 1/4” to 3/4” have close tolerance technology, i.e., location fromcenterline is +/- 0.005”. 1” flares have a tolerance of +/-0.03”

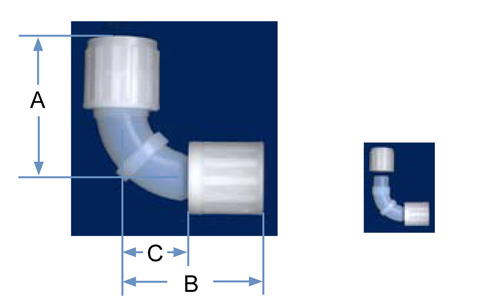

PFA Part No.	Tube O.D.	Orifice	A	B	C
UES44TN-1	1/4	.15	1.62	1.78	.79
UES66TN-1	3/8	.25	1.83	1.97	.93
UES88TN-1	1/2	.38	2.05	2.15	1.05
UES1212TN-1	3/4	.63	2.33	2.56	1.31
UES1616TN-1	1	.88	2.78	3.22	1.72
