| 型號 | 尺寸 | 規格 | 材質 | 墊座 |
| VP-210 | 3/8"~6" | ANSI, JIS, BS (IPS) | PVC | NR |
| VP-211 | 1/2"~1" | ANSI (CTS) | CPVC | NR |
|
|
||||||||||||||||||||||||
| CTS | |||||||||||||||||||||||||
|
|||||||||||||||||||||||||
|
SIZE
Nom
|
3/8"
(10
mm)
|
1/2"
(15
mm)
|
3/4"
(20
mm)
|
1"
(25
mm)
|
1-1/4"
(32
mm)
|
1-1/2"
(40
mm)
|
2"
(50
mm)
|
2-1/2"
(65
mm)
|
3"
(80
mm)
|
4"
(100
mm)
|
6"
(150
mm)
|
|

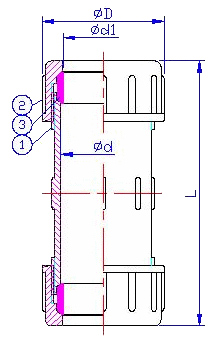

| ?d1 | JIS | 17.8 | 21.8 | 25.8 | 31.8 | 42 | 47.8 | 59.8 | 75.8 | 88.8 | 113.8 | 166 |
| ANSI | 16.8 | 21 | 26.47 | 33.2 | 42 | 48 | 60.1 | 72.8 | 88.7 | 114.1 | 168 | |
| BS | 16.8 | 21 | 26.4 | 33.2 | 41.8 | 47.9 | 60 | 75 | 88.5 | 113.9 | 167.8 | |
| ?D | 33 | 46.5 | 52 | 61 | 72 | 80 | 92 | 115 | 134 | 161 | 223 | |
| ?d | 19 | 23 | 30.5 | 37 | 46 | 52.5 | 64.3 | 78 | 93 | 118 | 173 | |
| L | 116.9 | 133 | 134.1 | 148 | 163 | 173.5 | 200 | 248 | 273 | 303.5 | 280 | |
