首頁 》 產品展示 》 傳導.管路 》 PFA管路系統

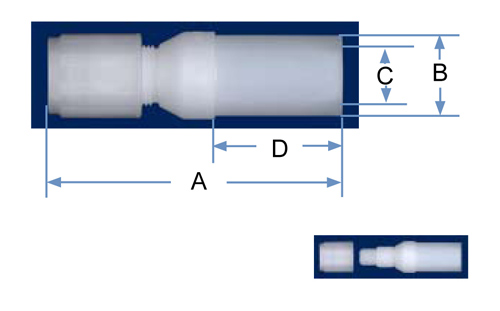

| PVDF Part No. | Tube O.D. | A | B | C | D |
| TSF4-20MM | 1/4 | 3.3 | .79 | .64 | 1.50 |
| TSF4-25MM | 1/4 | 3.30 | .98 | .82 | 1.50 |
| TSF6-20MM | 3/8 | 3.40 | .79 | .64 | 1.50 |
| TSF6-25MM | 3/8 | 3.40 | .98 | .82 | 1.50 |
| TSF8-20MM | 1/2 | 3.50 | .79 | .64 | 1.50 |
| TSF8-25MM | 1/2 | 3.50 | .98 | .82 | 1.50 |
| TSF8-32MM | 1/2 | 3.50 | 1.26 | 1.07 | 1.50 |
| TSF8-40MM | 1/2 | 3.50 | 1.57 | 1.38 | 1.50 |
| TSF12-20MM | 3/4 | 3.64 | .79 | .64 | 1.50 |
| TSF12-25MM | 3/4 | 3.64 | .98 | .82 | 1.50 |
| TSF12-32MM | 3/4 | 3.64 | 1.26 | 1.07 | 1.50 |
| TSF12-40MM | 3/4 | 3.64 | 1.57 | 1.38 | 1.50 |
| TSF16-25MM | 1 | 3.80 | .98 | .82 | 1.50 |
| TSF16-32MM | 1 | 3.80 | 1.26 | 1.07 | 1.50 |
| TSF16-40MM | 1 | 3.80 | 1.57 | 1.38 | 1.50 |
| TSF16-50MM | 1 | 3.90 | 1.97 | 1.73 | 1.48 |
| TSF16-63MM | 1 | 3.90 | 2.48 | 2.24 | 1.48 |
